Sun Xtender Batteries

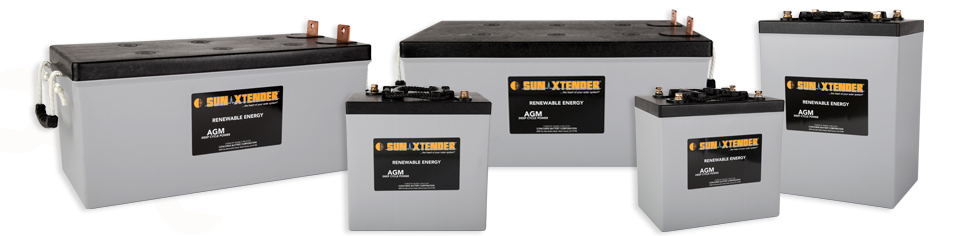

Sun Xtender Batteries Image

Sun Xtender Deep Cycle AGM batteries for your solar and photovoltaic needs are built with premium quality and reliable superior construction. These batteries are built with renewable energy in mind and are an industry leader in renewable energy.

Concorde the company that created the Sun Xtender line is committed to make sure customers get the best preforming batteries with the highest quality possible. This is why Concorde has tailored each battery line to a specific application rather than users just settling for just any deep-cycle battery on the market. These batteries are manufactured with the highest quality battery standard in the industry.

These Sun Xtender AGM battery technology is what is needed in renewable energy applications because they are built specifically for this kind of application. The AGM (Absorbed glass mat) deep cycle construction of these batteries allow for varying charge and discharge lengths to occur without the need for maintenance. This technology allows the battery to sustain multiple deep cycles because the battery does not have a 'memory' of cycle length and depletion states. The Sun Xtender batteries are designed with low impedance configuration and allows the battery to tolerate high in-rush current levels without damage to the glass mat cells allowing for a faster recharge time and ability to absorb the charge when it is available.

Sun Xtender batteries are made in the USA.

Order your SunXtender deep-cycle AGM Battery at Battery Wholesale Inc. the sizes available are:

12 Volt Batteries
PVX-340T Sealed AGM Deep-Cycle Battery
Type: Sealed AGM Deep-Cycle
Voltage: 12 V
Industry Reference: U1
Weight LB (KG):  25 LB / 11.4 KG
Dimensions Inches:  7.71" x 5.18" x 6.89"
Dimensions (+/- 2 mm): 196mm x 132mm x 175mm
Nominal Capacity Ampere Hours
@ 25℉ C (77 ℉) to 1.75 Volts per cell
1 Hr. Rate: 21
2 Hr. Rate: 27
4 Hr. Rate: 28
8 Hr. Rate: 30
24 Hr. Rate: 34
48 Hr. Rate: 36
72 Hr. Rate: 37
100 Hr. Rate: 37
120 Hr. Rate: 38
Specifications are subject to change without notice. The data/information contained herein has been reviewed & approved for general release on the basis that this document contains no export controlled information.
Sun Xtender Batteries Specification for the PVX-340T, Click Here.
Sun Xtender Batteries Drawings for the PVX-340T, Click Here.
PVX-420T Sealed AGM Deep-Cycle Battery
Type: Sealed AGM Deep-Cycle
Voltage: 12 V
Industry Reference: U1 Tall
Weight LB (KG):  30 LB / 13.6 KG
Dimensions Inches:  7.71" x 5.18" x 8.05"
Dimensions (+/- 2 mm): 196mm x 132mm x 204mm
Nominal Capacity Ampere Hours
@ 25℉ C (77 ℉) to 1.75 Volts per cell
1 Hr. Rate: 26
2 Hr. Rate: 33
4 Hr. Rate: 34
8 Hr. Rate: 36
24 Hr. Rate: 42
48 Hr. Rate: 43
72 Hr. Rate: 43
100 Hr. Rate: 44
120 Hr. Rate: 45
Specifications are subject to change without notice. The data/information contained herein has been reviewed & approved for general release on the basis that this document contains no export controlled information.
Sun Xtender Batteries Specification for the PVX-420T, Click Here.
Sun Xtender Batteries Drawings for the PVX-420T, Click Here.
PVX-490T Sealed AGM Deep-Cycle Battery
Type: Sealed AGM Deep-Cycle
Voltage: 12 V
Industry Reference: 22NF Group
Weight LB (KG):  36 LB / 16.4 KG
Dimensions Inches:  8.99" x 5.45" x 8.72"
Dimensions (+/- 2 mm): 228mm x 138mm x 221mm
Nominal Capacity Ampere Hours
@ 25℉ C (77 ℉) to 1.75 Volts per cell
1 Hr. Rate: 31
2 Hr. Rate: 39
4 Hr. Rate: 40
8 Hr. Rate: 43
24 Hr. Rate: 49
48 Hr. Rate: 52
72 Hr. Rate: 54
100 Hr. Rate: 54
120 Hr. Rate: 55
Specifications are subject to change without notice. The data/information contained herein has been reviewed & approved for general release on the basis that this document contains no export controlled information.
Sun Xtender Batteries Specification for the PVX-490T, Click Here.
Sun Xtender Batteries Drawings for the PVX-490T, Click Here.
PVX-560T Sealed AGM Deep-Cycle Battery
Type: Sealed AGM Deep-Cycle
Voltage: 12 V
Industry Reference: 22NF Group
Weight LB (KG):  40 LB / 18.2 KG
Dimensions Inches:  8.99" x 5.45" x 8.72"
Dimensions (+/- 2 mm): 228mm x 138mm x 221mm
Nominal Capacity Ampere Hours
@ 25℉ C (77 ℉) to 1.75 Volts per cell
1 Hr. Rate: 36
2 Hr. Rate: 45
4 Hr. Rate: 46
8 Hr. Rate: 49
24 Hr. Rate: 56
48 Hr. Rate: 60
72 Hr. Rate: 62
100 Hr. Rate: 62
120 Hr. Rate: 63
Specifications are subject to change without notice. The data/information contained herein has been reviewed & approved for general release on the basis that this document contains no export controlled information.
Sun Xtender Batteries Specification for the PVX-560T, Click Here.
Sun Xtender Batteries Drawings for the PVX-560T, Click Here.
PVX-690T Sealed AGM Deep-Cycle Battery
Type: Sealed AGM Deep-Cycle
Voltage: 12 V
Industry Reference: 24 Group
Weight LB (KG):  51 LB / 23.2 KG
Dimensions Inches:  10.22" x 6.60" x 8.93"
Dimensions (+/- 2 mm): 260mm x 168mm x 227mm
Nominal Capacity Ampere Hours
@ 25℉ C (77 ℉) to 1.75 Volts per cell
1 Hr. Rate: 42
2 Hr. Rate: 53
4 Hr. Rate: 55
8 Hr. Rate: 60
24 Hr. Rate: 69
48 Hr. Rate: 73
72 Hr. Rate: 76
100 Hr. Rate: 78
120 Hr. Rate: 79
Specifications are subject to change without notice. The data/information contained herein has been reviewed & approved for general release on the basis that this document contains no export controlled information.
Sun Xtender Batteries Specification for the PVX-690T, Click Here.
Sun Xtender Batteries Drawings for the PVX-690T, Click Here.
PVX-840T Sealed AGM Deep-Cycle Battery
Type: Sealed AGM Deep-Cycle
Voltage: 12 V
Industry Reference: 24 Group
Weight LB (KG):  57 LB / 25.9 KG
Dimensions Inches:  10.22" x 6.60" x 8.93"
Dimensions (+/- 2 mm): 260mm x 168mm x 227mm
Nominal Capacity Ampere Hours
@ 25℉ C (77 ℉) to 1.75 Volts per cell
1 Hr. Rate: 52
2 Hr. Rate: 66
4 Hr. Rate: 68
8 Hr. Rate: 74
24 Hr. Rate: 84
48 Hr. Rate: 90/td>
72 Hr. Rate: 94
100 Hr. Rate: 96
120 Hr. Rate: 97
Specifications are subject to change without notice. The data/information contained herein has been reviewed & approved for general release on the basis that this document contains no export controlled information.
Sun Xtender Batteries Specification for the PVX-840T, Click Here.
Sun Xtender Batteries Drawings for the PVX-840T, Click Here.
PVX-890T Sealed AGM Deep-Cycle Battery
Type: Sealed AGM Deep-Cycle
Voltage: 12 V
Industry Reference: 31 Group
Weight LB (KG):  62 LB / 28.2 KG
Dimensions Inches:  12.9" x 6.75" x 8.96"
Dimensions (+/- 2 mm): 328mm x 172mm x 228mm
Nominal Capacity Ampere Hours
@ 25℉ C (77 ℉) to 1.75 Volts per cell
1 Hr. Rate: 55
2 Hr. Rate: 70
4 Hr. Rate: 72
8 Hr. Rate: 79
24 Hr. Rate: 89
48 Hr. Rate: 95
72 Hr. Rate: 98
100 Hr. Rate: 100
120 Hr. Rate: 102
Specifications are subject to change without notice. The data/information contained herein has been reviewed & approved for general release on the basis that this document contains no export controlled information.
Sun Xtender Batteries Specification for the PVX-890T, Click Here.
Sun Xtender Batteries Drawings for the PVX-890T, Click Here.
PVX-1040HT Sealed AGM Deep-Cycle Battery
Type: Sealed AGM Deep-Cycle
Voltage: 12 V
Industry Reference: 27 Group
Weight LB (KG):  63 LB / 28.6 KG
Dimensions Inches:  13.12" x 6.60" x 8.93"
Dimensions (+/- 2 mm): 333mm x 168mm x 227mm
Nominal Capacity Ampere Hours
@ 25℉ C (77 ℉) to 1.75 Volts per cell
1 Hr. Rate: 65
2 Hr. Rate: 82
4 Hr. Rate: 85
8 Hr. Rate: 93
24 Hr. Rate: 104
48 Hr. Rate: 112
72 Hr. Rate: 116
100 Hr. Rate: 118
120 Hr. Rate: 120
Specifications are subject to change without notice. The data/information contained herein has been reviewed & approved for general release on the basis that this document contains no export controlled information.
Sun Xtender Batteries Specification for the PVX-1040HT, Click Here.
Sun Xtender Batteries Drawings for the PVX-1040HT, Click Here.
PVX-1040T Sealed AGM Deep-Cycle Battery
Type: Sealed AGM Deep-Cycle
Voltage: 12 V
Industry Reference: 27 Group
Weight LB (KG):  63 LB / 28.6 KG
Dimensions Inches:  12.01" x 6.6" x 8.93"
Dimensions (+/- 2 mm): 305mm x 168mm x 227mm
Nominal Capacity Ampere Hours
@ 25℉ C (77 ℉) to 1.75 Volts per cell
1 Hr. Rate: 65
2 Hr. Rate: 82
4 Hr. Rate: 85
8 Hr. Rate: 93
24 Hr. Rate: 104
48 Hr. Rate: 112
72 Hr. Rate: 116
100 Hr. Rate: 118
120 Hr. Rate: 120
Specifications are subject to change without notice. The data/information contained herein has been reviewed & approved for general release on the basis that this document contains no export controlled information.
Sun Xtender Batteries Specification for the PVX-1040T, Click Here.
Sun Xtender Batteries Drawings for the PVX-1040T, Click Here.
PVX-1080T Sealed AGM Deep-Cycle Battery
Type: Sealed AGM Deep-Cycle
Voltage: 12 V
Industry Reference: 31 Group
Weight LB (KG):  65 LB / 29.5 KG
Dimensions Inches:  12.9" x 6.75" x 8.96"
Dimensions (+/- 2 mm): 328mm x 172mm x 228mm
Nominal Capacity Ampere Hours
@ 25℉ C (77 ℉) to 1.75 Volts per cell
1 Hr. Rate: 68
2 Hr. Rate: 86
4 Hr. Rate: 88
8 Hr. Rate: 97
24 Hr. Rate: 108
48 Hr. Rate: 118
72 Hr. Rate: 122
100 Hr. Rate: 124
120 Hr. Rate: 126
Specifications are subject to change without notice. The data/information contained herein has been reviewed & approved for general release on the basis that this document contains no export controlled information.
Sun Xtender Batteries Specification for the PVX-1080T, Click Here.
Sun Xtender Batteries Drawings for the PVX-1080T, Click Here.
PVX-1530T Sealed AGM Deep-Cycle Battery
Type: Sealed AGM Deep-Cycle
Voltage: 12 V
Industry Reference: 30H Tall Group
Weight LB (KG):  91 LB / 41.3 KG
Dimensions Inches:  13.46" x 6.77" x 11.95"
Dimensions (+/- 2 mm): 342mm x 172mm x 304mm
Nominal Capacity Ampere Hours
@ 25℉ C (77 ℉) to 1.75 Volts per cell
1 Hr. Rate: 95
2 Hr. Rate: 120
4 Hr. Rate: 124
8 Hr. Rate: 136
24 Hr. Rate: 153
48 Hr. Rate: 167
72 Hr. Rate: 173
100 Hr. Rate: 176
120 Hr. Rate: 179
Specifications are subject to change without notice. The data/information contained herein has been reviewed & approved for general release on the basis that this document contains no export controlled information.
Sun Xtender Batteries Specification for the PVX-1530T, Click Here.
Sun Xtender Batteries Drawings for the PVX-1530T, Click Here.
PVX-2120L Sealed AGM Deep-Cycle Battery
Type: Sealed AGM Deep-Cycle
Voltage: 12 V
Industry Reference: 4D Group
Weight LB (KG):  127 LB / 57.6 KG
Dimensions Inches:  20.76" x 8.70" x 9.77"
Dimensions (+/- 2 mm): 527mm x 221mm x 248mm
Nominal Capacity Ampere Hours
@ 25℉ C (77 ℉) to 1.75 Volts per cell
1 Hr. Rate: 136
2 Hr. Rate: 172
4 Hr. Rate: 176
8 Hr. Rate: 194
24 Hr. Rate: 212
48 Hr. Rate: 235
72 Hr. Rate: 244
100 Hr. Rate: 250
120 Hr. Rate: 253
Specifications are subject to change without notice. The data/information contained herein has been reviewed & approved for general release on the basis that this document contains no export controlled information.
Sun Xtender Batteries Specification for the PVX-2120L, Click Here.
Sun Xtender Batteries Drawings for the PVX-2120L, Click Here.
PVX-2580L Sealed AGM Deep-Cycle Battery
Type: Sealed AGM Deep-Cycle
Voltage: 12 V
Industry Reference: 8D Group
Weight LB (KG):  159 LB / 72.1 KG
Dimensions Inches:  20.76" x 10.89" x 9.77"
Dimensions (+/- 2 mm): 527mm x 277mm x 248mm
Nominal Capacity Ampere Hours
@ 25℉ C (77 ℉) to 1.75 Volts per cell
1 Hr. Rate: 165
2 Hr. Rate: 209
4 Hr. Rate: 214
8 Hr. Rate: 236
24 Hr. Rate: 258
48 Hr. Rate: 285
72 Hr. Rate: 295
100 Hr. Rate: 300
120 Hr. Rate: 305
Specifications are subject to change without notice. The data/information contained herein has been reviewed & approved for general release on the basis that this document contains no export controlled information.
Sun Xtender Batteries Specification for the PVX-2580L, Click Here.
Sun Xtender Batteries Drawings for the PVX-2580L, Click Here.
6 Volt Batteries
PVX-1030T Sealed AGM Deep-Cycle Battery
Type: Sealed AGM Deep-Cycle
Voltage: 6 V
Industry Reference: 24 Group
Weight LB (KG):  42 LB / 19.1 KG
Dimensions Inches:  10.21" x 6.6" x 8.92"
Dimensions (+/- 2 mm): 259mm x 168mm x 227mm
Nominal Capacity Ampere Hours
@ 25℉ C (77 ℉) to 1.75 Volts per cell
1 Hr. Rate: 65
2 Hr. Rate: 82
4 Hr. Rate: 85
8 Hr. Rate: 93
24 Hr. Rate: 103
48 Hr. Rate: 112
72 Hr. Rate: 116
100 Hr. Rate: 118
120 Hr. Rate: 120
Specifications are subject to change without notice. The data/information contained herein has been reviewed & approved for general release on the basis that this document contains no export controlled information.
Sun Xtender Batteries Specification for the PVX-1030T, Click Here.
Sun Xtender Batteries Drawings for the PVX-890T, Click Here.
PVX-1380T Sealed AGM Deep-Cycle Battery
Type: Sealed AGM Deep-Cycle
Voltage: 6 V
Industry Reference: 24 Group
Weight LB (KG):  51 LB / 23.2 KG
Dimensions Inches:  10.21" x 6.60" x 8.92"
Dimensions (+/- 2 mm): 259mm x 168mm x 227mm
Nominal Capacity Ampere Hours
@ 25℉ C (77 ℉) to 1.75 Volts per cell
1 Hr. Rate: 84
2 Hr. Rate: 106
4 Hr. Rate: 110
8 Hr. Rate: 120
24 Hr. Rate: 138
48 Hr. Rate: 146
72 Hr. Rate: 151
100 Hr. Rate: 155
120 Hr. Rate: 158
Specifications are subject to change without notice. The data/information contained herein has been reviewed & approved for general release on the basis that this document contains no export controlled information.
Sun Xtender Batteries Specification for the PVX-1380T, Click Here.
Sun Xtender Batteries Drawings for the PVX-1380T, Click Here.
PVX-2240T Sealed AGM Deep-Cycle Battery
Type: Sealed AGM Deep-Cycle
Voltage: 6 V
Industry Reference: GC2 Group
Weight LB (KG):  67 LB / 30.4 KG
Dimensions Inches:  10.28" x 7.06" x 9.92"
Dimensions (+/- 2 mm): 261mm x 179mm x 252mm
Nominal Capacity Ampere Hours
@ 25℉ C (77 ℉) to 1.75 Volts per cell
1 Hr. Rate: 143
2 Hr. Rate: 180
4 Hr. Rate: 185
8 Hr. Rate: 204
24 Hr. Rate: 224
48 Hr. Rate: 246
72 Hr. Rate: 256
100 Hr. Rate: 260
120 Hr. Rate: 263
Specifications are subject to change without notice. The data/information contained herein has been reviewed & approved for general release on the basis that this document contains no export controlled information.
Sun Xtender Batteries Specification for the PVX-2240T, Click Here.
Sun Xtender Batteries Drawings for the PVX-2240T, Click Here.
PVX-3050T Sealed AGM Deep-Cycle Battery
Type: Sealed AGM Deep-Cycle
Voltage: 6 V
Industry Reference: GC2 Tall Group
Weight LB (KG):  91 LB / 41.3 KG
Dimensions Inches:  10.28" x 7.06" x 12.94"
Dimensions (+/- 2 mm): 261mm x 179mm x 329mm
Nominal Capacity Ampere Hours
@ 25℉ C (77 ℉) to 1.75 Volts per cell
1 Hr. Rate: 190
2 Hr. Rate: 245
4 Hr. Rate: 270
8 Hr. Rate: 280
24 Hr. Rate: 305
48 Hr. Rate: 335
72 Hr. Rate: 348
100 Hr. Rate: 354
120 Hr. Rate: 358
Specifications are subject to change without notice. The data/information contained herein has been reviewed & approved for general release on the basis that this document contains no export controlled information.
Sun Xtender Batteries Specification for the PVX-3050T, Click Here.
Sun Xtender Batteries Drawings for the PVX-3050T, Click Here.
PVX-4050HT Sealed AGM Deep-Cycle Battery
Type: Sealed AGM Deep-Cycle
Voltage: 6 V
Industry Reference: L16 Tall Group
Weight LB (KG):  120 LB / 54.4 KG
Dimensions Inches:  11.64" x 6.95" x 15.73"
Dimensions (+/- 2 mm): 296mm x 177mm x 399mm
Nominal Capacity Ampere Hours
@ 25℉ C (77 ℉) to 1.75 Volts per cell
1 Hr. Rate: 266
2 Hr. Rate: 345
4 Hr. Rate: 360
8 Hr. Rate: 376
24 Hr. Rate: 405
48 Hr. Rate: 424
72 Hr. Rate: 434
100 Hr. Rate: 443
120 Hr. Rate: 448
Specifications are subject to change without notice. The data/information contained herein has been reviewed & approved for general release on the basis that this document contains no export controlled information.
Sun Xtender Batteries Specification for the PVX-4050HT, Click Here.
Sun Xtender Batteries Drawings for the PVX-4050HT, Click Here.
2 Volt Batteries
PVX-6480T Sealed AGM Deep-Cycle Battery
Type: Sealed AGM Deep-Cycle
Voltage: 2 V
Industry Reference: 31 Group
Weight LB (KG):  67 LB / 30.5
Dimensions Inches:  12.9" x 6.75" x 8.96"
Dimensions (+/- 2 mm): 328mm x 171mm x 228mm
Nominal Capacity Ampere Hours
@ 25℉ C (77 ℉) to 1.75 Volts per cell
1 Hr. Rate: 408
2 Hr. Rate: 516
4 Hr. Rate: 528
8 Hr. Rate: 582
24 Hr. Rate: 648
48 Hr. Rate: 708
72 Hr. Rate: 732
100 Hr. Rate: 746
120 Hr. Rate: 756
Specifications are subject to change without notice. The data/information contained herein has been reviewed & approved for general release on the basis that this document contains no export controlled information.
Sun Xtender Batteries Specification for the PVX-6480T, Click Here.
Sun Xtender Batteries Drawings for the PVX-6480T, Click Here.
PVX-6720T Sealed AGM Deep-Cycle Battery
Type: Sealed AGM Deep-Cycle
Voltage: 2 V
Industry Reference: GC2 Group
Weight LB (KG):  70 LB / 31.8 KG
Dimensions Inches:  10.28" x 7.06" x 9.92"
Dimensions (+/- 2 mm): 261mm x 176mm x 252mm
Nominal Capacity Ampere Hours
@ 25℉ C (77 ℉) to 1.75 Volts per cell
1 Hr. Rate: 429
2 Hr. Rate: 540
4 Hr. Rate: 555
8 Hr. Rate: 612
24 Hr. Rate: 672
48 Hr. Rate: 738
72 Hr. Rate: 768
100 Hr. Rate: 780
120 Hr. Rate: 789
Specifications are subject to change without notice. The data/information contained herein has been reviewed & approved for general release on the basis that this document contains no export controlled information.
Sun Xtender Batteries Specification for the PVX-6720T, Click Here.
Sun Xtender Batteries Drawings for the PVX-6720T, Click Here.
PVX-9150T Sealed AGM Deep-Cycle Battery
Type: Sealed AGM Deep-Cycle
Voltage: 2 V
Industry Reference: GC2 Tall Group
Weight LB (KG):  94 LB / 42.6 KG
Dimensions Inches:  10.28" x 7.06" x 12.94"
Dimensions (+/- 2 mm): 261mm x 179mm x 329mm
Nominal Capacity Ampere Hours
@ 25℉ C (77 ℉) to 1.75 Volts per cell
1 Hr. Rate: 570
2 Hr. Rate: 735
4 Hr. Rate: 810
8 Hr. Rate: 840
24 Hr. Rate: 915
48 Hr. Rate: 1005
72 Hr. Rate: 1044
100 Hr. Rate: 1062
120 Hr. Rate: 1074
Specifications are subject to change without notice. The data/information contained herein has been reviewed & approved for general release on the basis that this document contains no export controlled information.
Sun Xtender Batteries Specification for the PVX-9150T, Click Here.
Sun Xtender Batteries Drawings for the PVX-9150T, Click Here.
PVX-12150HT Sealed AGM Deep-Cycle Battery
Type: Sealed AGM Deep-Cycle
Voltage: 2 V
Industry Reference: L16 Tall Group
Weight LB (KG):  124 LB / 56.2 KG
Dimensions Inches:  11.64" x 6.95" x 15.73"
Dimensions (+/- 2 mm): 296mm x 177mm x 399mm
Nominal Capacity Ampere Hours
@ 25℉ C (77 ℉) to 1.75 Volts per cell
1 Hr. Rate: 798
2 Hr. Rate: 1035
4 Hr. Rate: 1080
8 Hr. Rate: 1128
24 Hr. Rate: 1215
48 Hr. Rate: 1272
72 Hr. Rate: 1302
100 Hr. Rate: 1329
120 Hr. Rate: 1344
Specifications are subject to change without notice. The data/information contained herein has been reviewed & approved for general release on the basis that this document contains no export controlled information.
Sun Xtender Batteries Specification for the PVX-12150HT, Click Here.
Sun Xtender Batteries Drawings for the PVX-12150HT, Click Here.
